The S6000-FC03 digital thermostat is used for air-conditioning electric valve control and fan-coil control. By detecting the indoor temperature and comparing it with the temperature set by the users in real time, it can automatically adjust the air-conditioning operating state, so that the air-conditioning system can meet the needs of users for comfort and energy saving to the greatest extent
It is widely used in central air-conditioning systems of hotels, office buildings, high-end residences, hospitals, and executive office buildings.

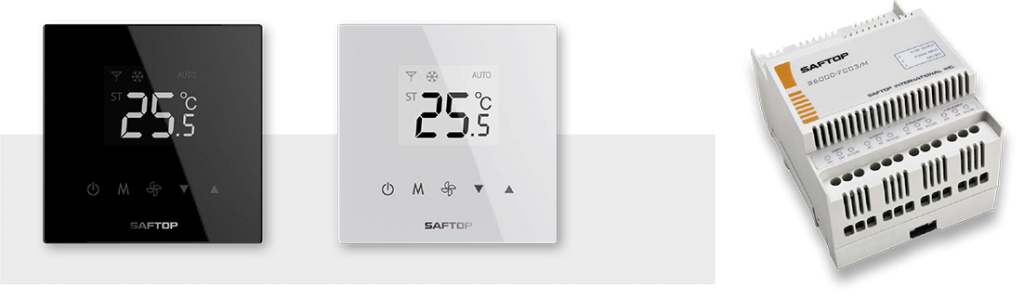

It is composed of S6000-FC03 digital thermostat panel and S6000-FC03/M digital thermostat main controller.
The digital thermostat main controller adopts the DIN-Rail Mounting method.
The digital thermostat panel is installed on the wall standard 86 box.
S6000-FC03 digital thermostat panel
Available in white and black to suit different installation occasions.
S6000-FC03/M digital thermostat main controller
Parameter Table
| Model | S6000-FC03/M |
| Size | 72 x 90 x 63.5 mm |
| Communication BUS | RS485 |
| Protocol standard | Modbus |
| Temperature setting range | 16℃~36℃ |
| Output contact | Three-way valve/compressor contact：2A/250VAC Blower contact： 3A/250VAC |
| Installation method | Main controller:DIN-Rail Mounting；Panel:Standard 86 box installation |
| Working environment | 0～50℃，0～90%RH |
| Storage environment | -20～60℃，0～90%RH |
Article number：
S6000-FC03/K （Black panel）： 8801-00000114
S6000-FC03/W（White panel）： 8801-00000115
S6000-FC03/M（Main controller）： 8801-00000113
Dimensions
